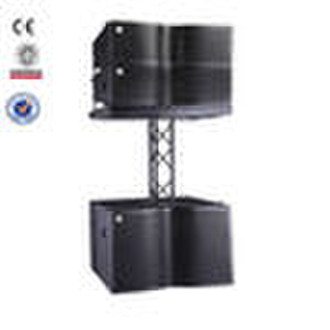

line array system CVR W-28B&W-115B

Model W-28B Type Line Array System Frequency Response 60Hz-20KHz±3dB Directivity Index (DI) 12(+2/2) 1.2KHz-16KHz Power Handling LF300W (RMS) 600W (PEAK) HF60W(RMS)120W(PEAK) Sensitivity LF97dB (1W/1M) HF108dB(1W/1M) Max/S.P.L LF120dB (PEAK/1M) HF126dB(1W/1M) LF section 2×8 "(206mm)neodymium woofer 50mm(2 in) coil Nominal impedance 16 ohm HF section 1*1.75"neodymium compression driver with 44mm titanium diaphragm Nominal impedance 16 ohm Enclosure plwoodOutput section 2-channel Dispersion pattern 110°H×11°V Finish Black paint Array Design Arrays of less than 3×W-28B will provide poor dispersion control and are neither recommended nor supported Speaker Cables LF1(+)1(-) HF2(+)2(-) Rigging System Please refer to the W-28B user manual before any operation Input Connectors 2×NL4MP speakon Dimensions 780×239×500mm (W×H×D) Weight 21kg Model W 115B Type Line Array Sub bass System Frequency Response 40Hz-150Hz±3dB Power Handling 500W (RMS) 1000W (PEAK) Sensitivity 107dB (1W @ 1M) Max @ S.P.L 134dB (PEAK/1M) Components 15 woofers 380mm neodymium Nominal Impedance 8 ohm Finish Black paint Speaker Cable 1(+)1(-) Input Connectors 2×NL4MP speakon Dimensions 780×455×660mm (W×H×D) Weight 45kg
