line array speaker professional audio pro sound

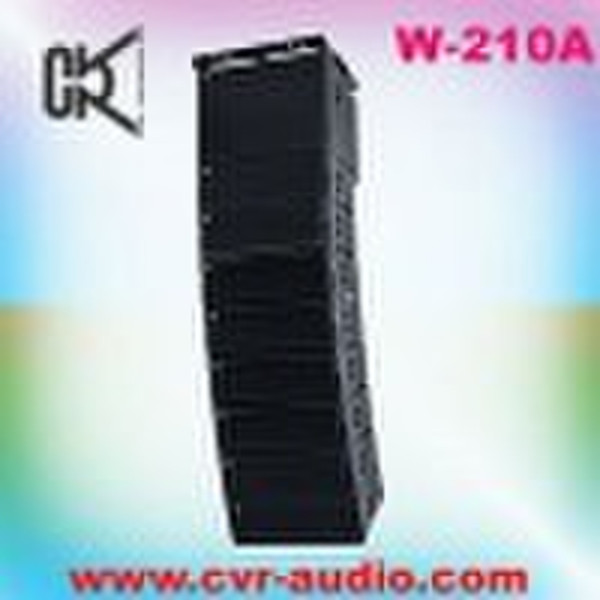

Model W-210 Type Line Array System Frequency Response 55Hz-20KHz±3dB Directivity Index (DI) 12(+2/2) 1.2KHz-16KHz Power Handling LF400W (RMS) 800W (PEAK) HF160W(RMS)320W(PEAK) Sensitivity LF99dB () HF108dB() Max @ S.P.L LF125dB (PEAK/1M) HF127dB(PEAK/1M) LF section 2×10"(260mm)neodymium woofer 63mm(2.5in) coil Nominal impedance 16ohm HF section 2×1.75" neodymium compression driver with 44mm titanium diaphragm Nominal impedance 16ohm Output section 2-channel Dispersion pattern 110°H×9°V Finish Black paint Array Design Arrays of less than 3×W-210 will provide poor dispersion control and are neither recommended nor supported Speaker Cables LF1(+)1(-) HF3(+)3(-) Rigging System Please refer to the W-210 user manual before any operation Input Connectors 2×NL8MP speakon Dimensions 925×316×600mm (W×H×D) Weight 36kg Model W-250 Type Line Array Sub-bass System Frequency Response 40Hz-150Hz±3dB Power Handling 1200W(RMS) 2400W(PEAK) Sensitivity 112dB(1W @ 1M) Max @ S.P.L 143dB(PEAK/1M) Components 2×15"neodymium woofers 100mm(4in)coil Nominal Impedance 4 ohm Finish Black paint Speaker Cables 1(+) 1(-) Input Connectors 2×NL4MP speakon Dimensions 925×520×720mm (W×H×D) Weight 67kg
